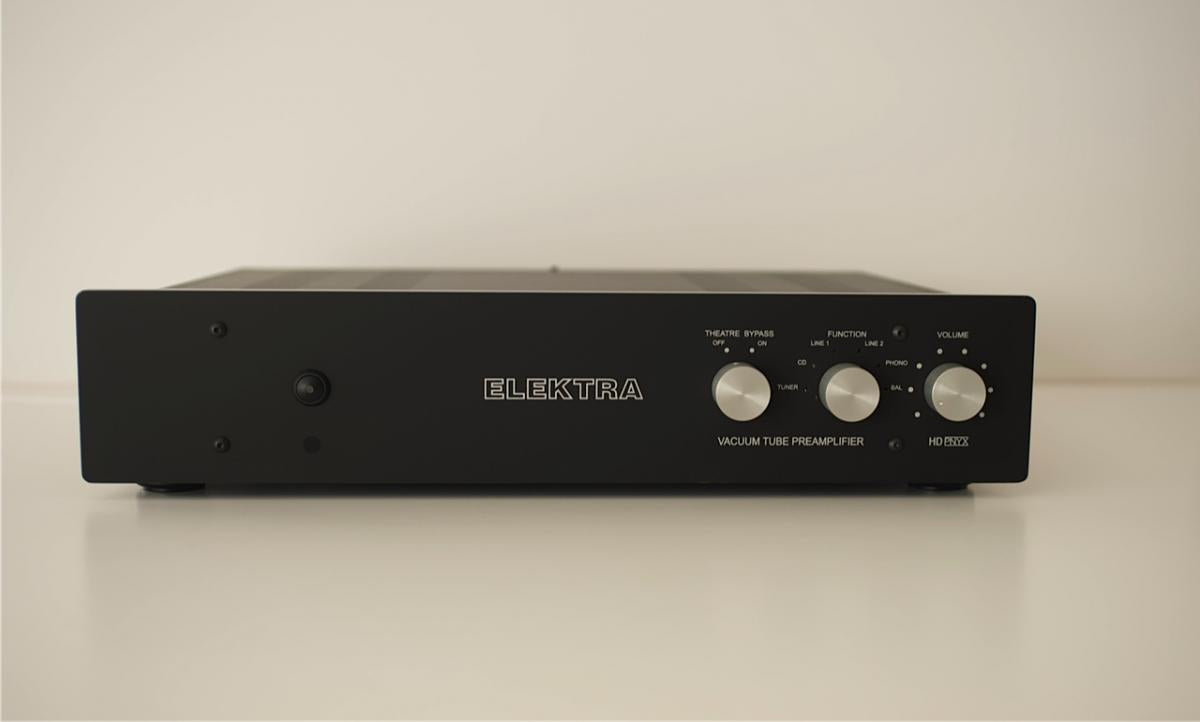

Elektra Pnyx Tube Preamplifier (Optional MM/MC Phono Board)

Power Supply
With all audio products the power supply is a significant contributor to the success or failure of sound quality. With valves circuits this is even more so than anywhere else. With both our heater and anode power supplies we use discrete regulators. With our anode supply we achieve low noise (-100dBV) which is almost an 10 times better than other existing supplies. Its output impedance is 20 milliohm across the entire audio band. two such power supplies are used one for the left channel and one for the right.

Operating Circuit
With the signal path of our circuit we opted for DC coupling this is a truly unique feature because it eliminates capacitors and other coupling elements in the signal path which can cause distortions and resonances, this results in better sound quality.

Balanced Operation
To top it all off our valve circuit is balanced , this has two major benefits , firstly it is inherently lower in distortion than unbalanced circuits and secondly it allows you to transmit audio signals both on the printed circuit board or between two pieces of equipment with greater immunity to interference which degrades sound quality. No transformer is used in the signal path.

Construction
The Elektra preamplifier is painstakingly hand built using audiophile grade parts selected for their sonic excellence reliability and stability.
