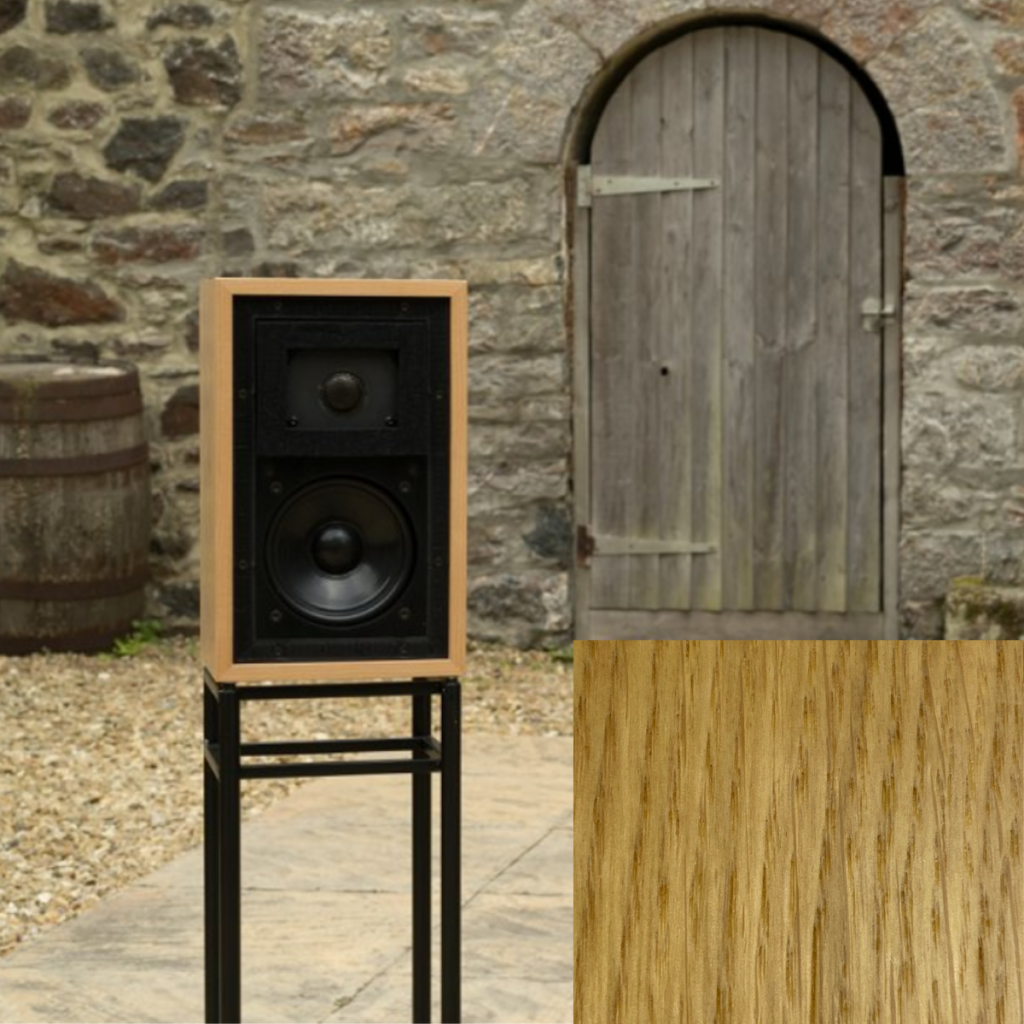

Graham Audio / Chartwell LS3/5a BBC Monitors
A stablemate of the industry for over 70 years. Few products hold this legendary status, such as the Quad Esl-57's and Linn LP12
Graham Audio are proud to present the BBC-licensed Chartwell LS3/5A.
The LS3/5A was produced by BBC Designs Department in response to detail changes in the performance of the drive units that were originally chosen for the LS3/5 as designed by BBC Research and Development. It is the most well-known of all the BBC loudspeakers, and remains the compact loudspeaker of choice for many today.
As you would expect, our version - engineered by Derek Hughes - includes authentic details such as the perforated metal tweeter grille, thick felt pads surrounding the tweeter, and Velcro rather than our usual hidden magnets to secure the grille frame. The cabinet uses 12mm panels and a fixed rear panel, according to BBC Designs Department's specification.
As the only company to have ever manufactured the LS3/5, and now also the LS3/5A, audiophiles are now in the unique position of being able to hear for themselves the differences that these changes made to the design originally intended by BBC R&D.
Cherry or Oak Standard RRP
Walnut and Rosewood add $249 to RRP
Ebony Add $749 to RRP
Custom Finish $POA

Graham Audio / Chartwell LS3/5a BBC Monitors
System | 2 Way, sealed enclosure |
Enclosure | Thin wall construction, 12mm birch plywood |
Finish | Real wood veneer |
Dimensions (w/h/d) | 19cm by 30.5cm by 16.5cm |
Weight | 5.3kg |
Frequency response | 70Hz to 20kHz, ±3dB |
Nominal impedance | 11Ω |
Sensitivity | 83dB SPL (2.83V, 1m) |
Maximum output | 95dB for a pair at 2m |
Bass/midrange | 110mm |
Tweeter | 19mm dome tweeter |
Recommended amplifier power | 25 to 50 watts unclipped programme |
