Graham Audio LS5/9F. Pure sixties tweed traditional

Translation missing: en.products.product.price.regular_price $10,999.00
Translation missing: en.products.product.price.sale_price $10,999.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.

The LS5/9 is based on a speaker design from the 70s developed by a group of BBC engineers for the BBC studios. The LS5/9f takes this design one step further.

This is a loudspeaker of the modern age that is built like a late sixties product, it shouldn't be so nice to listen to being made the way it is ... however this loudspeaker posseses a genuinely appealing nature.

Sitting alone after work with a Cyus XR system streaming music from my heart and soul through these speakers was like a special night out with a precious old and new friend. One simply wants to listen to the music more and more

"The Absolute Sound" on the Graham LS5/9f

Very similar to the LS5/9, this version employs a full length cabinet that extends the bass and the dynamics. Still a very classic, easy listening sound. These are a delight to have around.

Cherry, Oak same price ...

Walnut, Rosewood Add $499

Ebony Add $999

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Graham Audio LS5/9F. Pure sixties tweed traditional

Graham Audio LS5/9F. Pure sixties tweed traditional

Translation missing: en.products.product.price.regular_price $10,999.00
Translation missing: en.products.product.price.sale_price $10,999.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Product description
Shipping & Returns

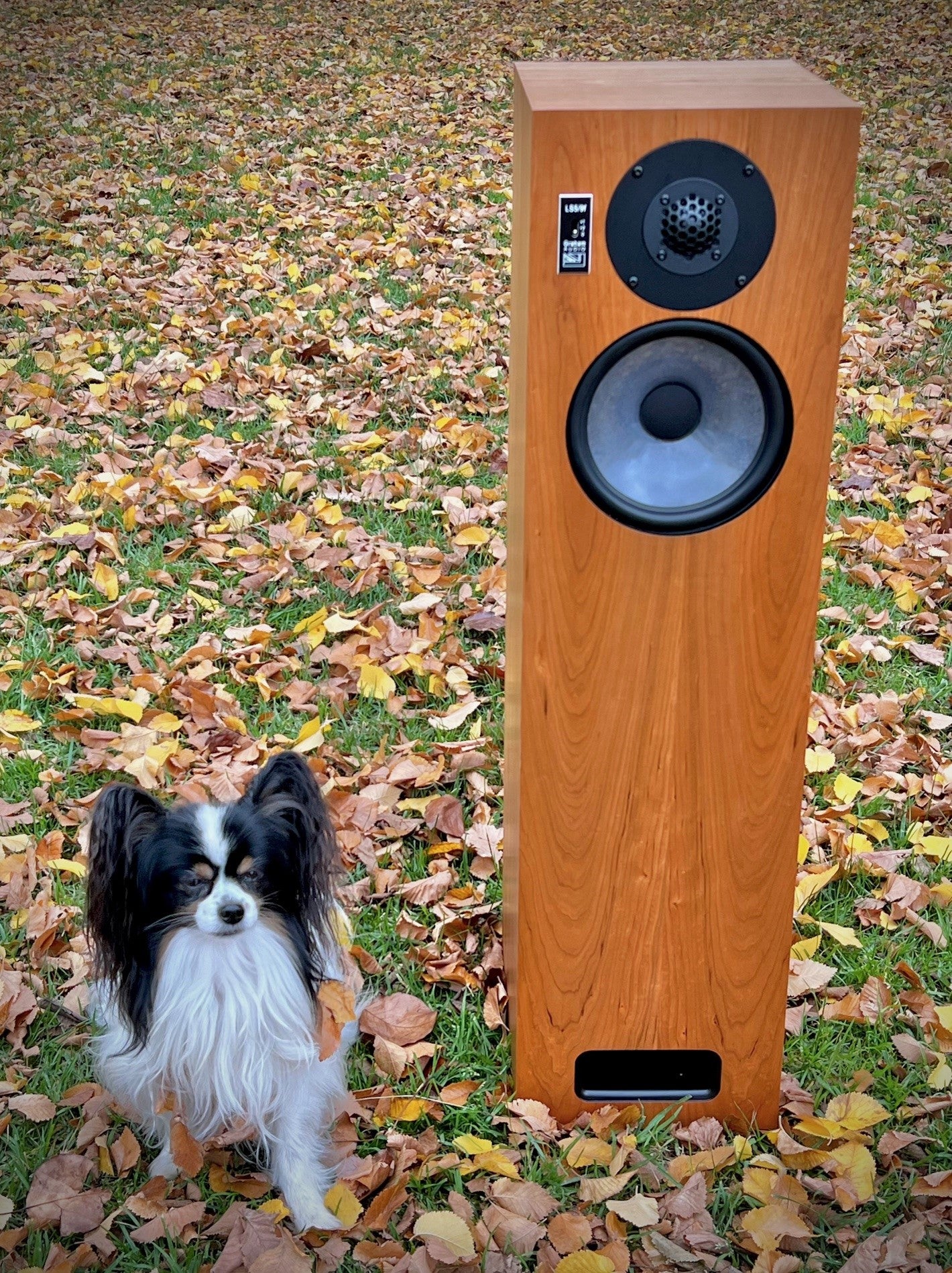

A development of the famous BBC LS5/9, the LS5/9f is the perfect choice for those who prefer floor standing loudspeakers over the traditional stand-mount form factor.

However, the changes aren't simply cosmetic. Yes, this model uses the same handmade bass/midrange driver from Volt along with the 34mm Audax tweeter as the regular LS5/9, both selected to the same tight tolerances. But the larger cabinet allows for increased bass extension and greater dynamic range.

Based on positive feedback from customers and dealer and distribution network, Graham Audio have replaced the soldered connections for tweeter level calibration with the discrete switch first seen in the LS6, which allows for subtle adjustment of the high frequency level. This is useful to help overcome difficulties presented by some acoustic environments, especially those with a lot of absorbent furnishings and finishes.

The cabinet follows established BBC "thinwall" construction practice, and includes the integrated plinth with flow-optimised port first seen in the LS6f. As usual, the grille is held in place using hidden magnets. A range of hand selected real wood veneers is available.

System 2 Way, reflex loading
Enclosure Thin wall construction
Finish Real wood veneer
Dimensions (w/h/d) 35cm by 105cm by 37cm (including plinth)
Weight 25kg
Frequency response 40Hz to 16kHz, ±3dB
Nominal impedance
Sensitivity 87dB SPL (2.83V, 1m)
Maximum output Over 100dB for a pair at 2m
Bass/midrange 200mm Diaphnatone polypropylene
Tweeter Son Audax HD13D34H
Recommended amplifier power 50 to 200 watts unclipped programme
