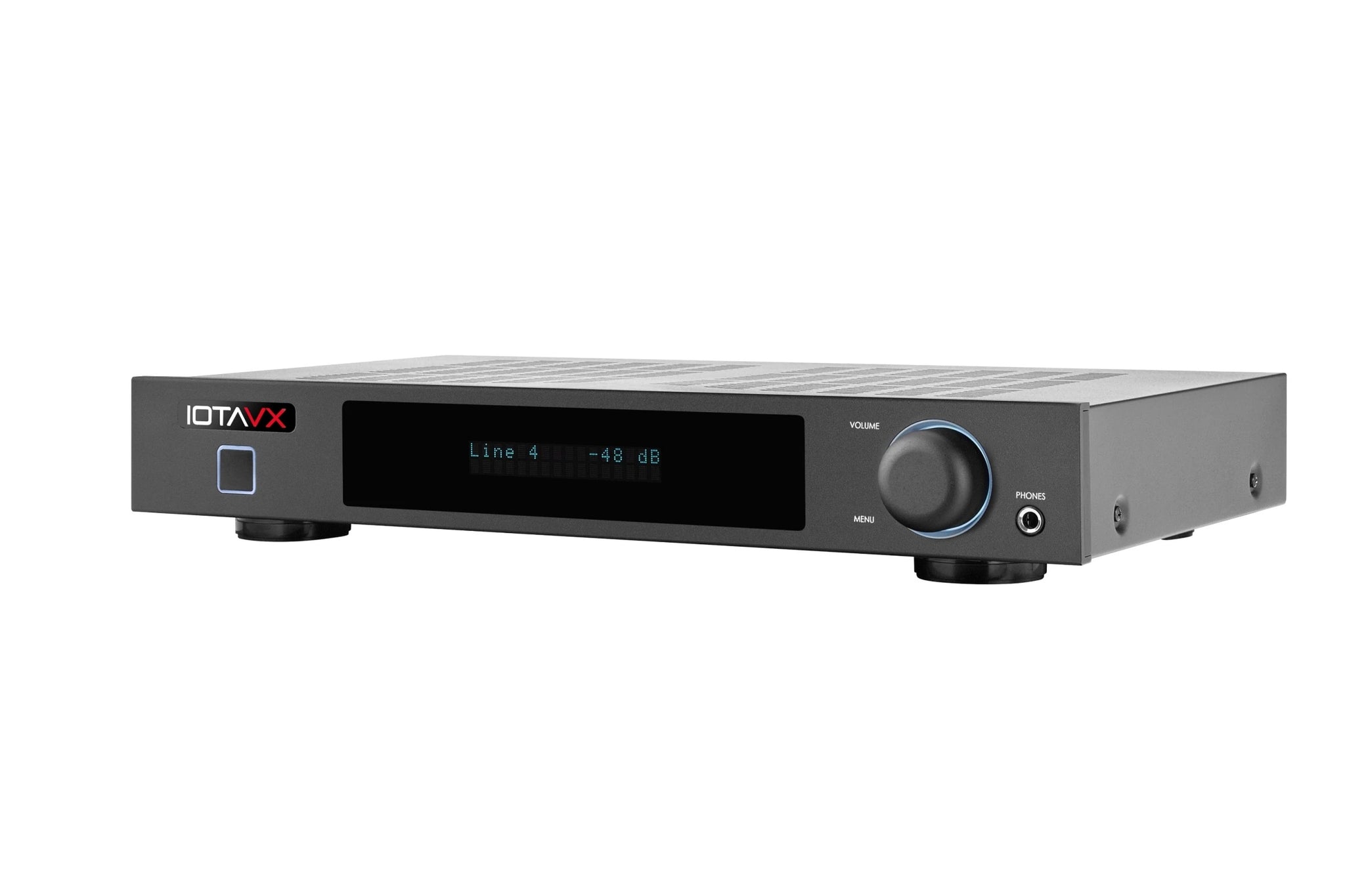

IOTAVX SA3
From the outside, this looks like an unremarkable small stereo amplifier but as soon as the chassis is lifted, you realise that there's some serious hardware under the cover.
One massive toroidal transformer powers this amplifier giving it 90W into 4 Ohms - that a lot for a class AB amp.
It allows allows for bridging mode which means you can use this in conjunction with a power amplifier and double the power output.
It has a range of inputs making it versatile and functional for the whole family. Including optical, coaxial and phono. There is also a Bluetooth adaptor as an option available for this unit.
IOTAVX SA3
| Type: | Stereo Integrated Amplifier |
| Poweroutput (RMS): | 45W (8Ω, 2 Channels), 90W (8Ω, 1 Channel bridged), 90W (4Ω, 2 Channels), 180W (4Ω, 1 Channel bridged), |
| Audio Inputs: | 5x RCA (Input sensitivity 200mV), 1x S/PDIF coaxial, 1x Toslink optical, 1x Bluetooth (IOTAVX Bluetooth Adapter notwendig), 1x Phono (MM) (Input sensitivity 2,5mV) |
| Audio Outputs: | Loudspeaker Output, 1x Sub Out, 1x Pre Out, 1x Headphone Out |
| Additional In- and Outputs: | 1x RS-232 Input, 2x Trigger Output, 1x Dimmer Control (10 Steps) |
| Distortion (THD+N): | =0.005% (80% Power Output, 1 kHz) |
| SNR: | >105dB (32W, A-Weighting) |
| Frequency Response (+/-3dB): | 10Hz - 100kHz |
| Power Supply: | 115VAC or 230VAC, @ 50/60Hz |
| Standby Consumption: | <0.5W |
| Dimensions (W x H x D): | 435 x 70 x 240 mm (Height incl. feet) |
| Weight: | 6,5 kg |
| Warranty: | 2 years |
