Magnetar UDP800 Disc Player of everything

Magnetar UDP800 Universal Blu-ray Disc Player

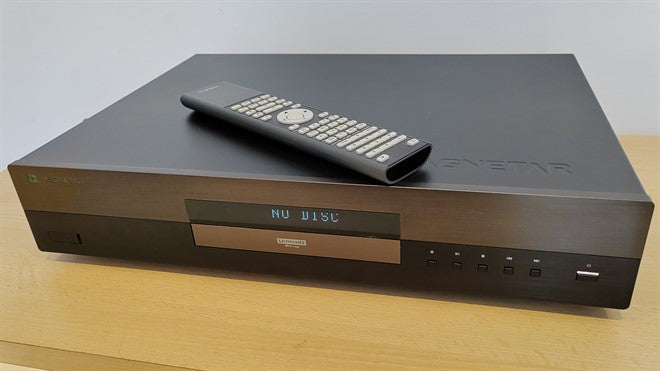

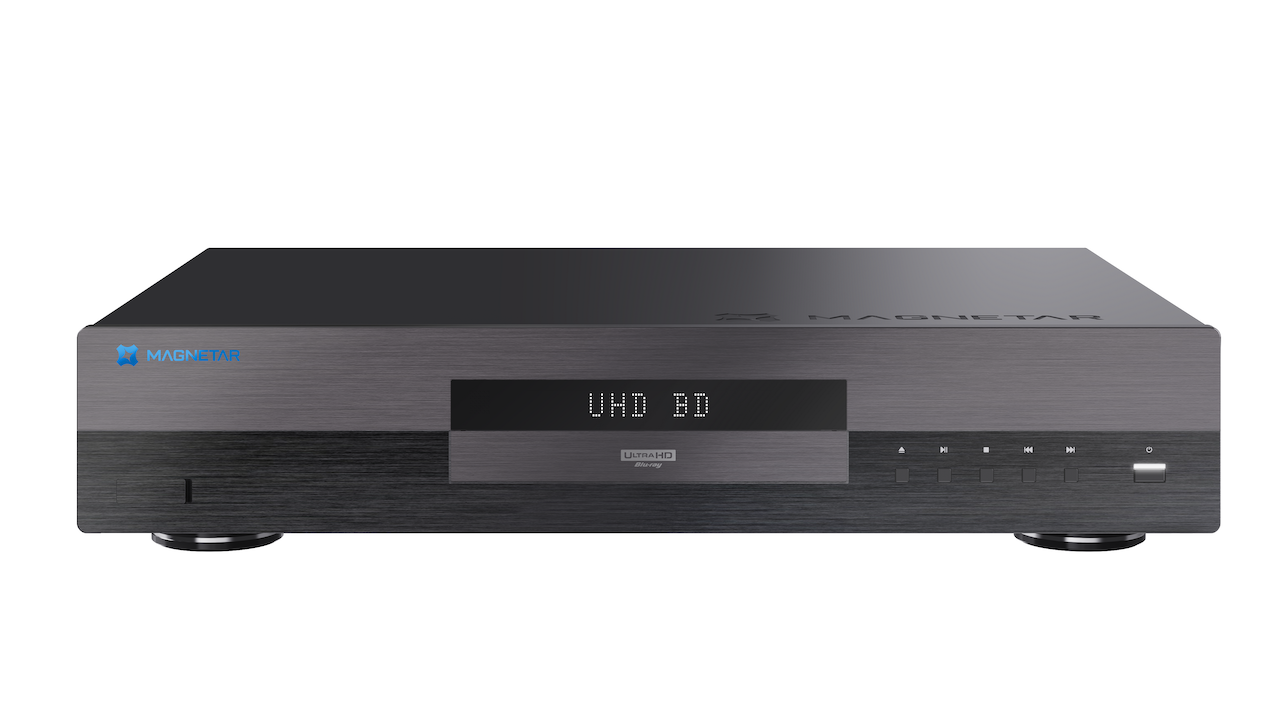

The Magnetar UDP800 is a high end universal blu-ray disc player specifically designed with high end video and audio in mind. The player features advanced image decoding and processing technology, with 4K ultra HD and HDR support, including Dolby Vision and HDR10+ providing clear and sharp picture and rich colours. The UDP800 features a metal chassis which is not only highly durable but provides an elegant high end look.

Key Features:

• 4K UHD Blu-ray player
• Also plays BR, 3D BR, DVD, DVD-Audio, CD, SACD etc
• Supports HDR formats - Dolby Vision, HDR10+, HDR10
• Supports Dolby Atmos, DTS-X, Dolby TrueHD and DTS-HD Master Audio
• Play hi-res media from USB or NAS HDD, up to 16TBs
• Supports DLNA and SMB protocols
• DSD64/128, multi-channel DSD64, and 192kHz/24-bit PCM formats
• AIFF, ALAC, APE, FLAC and WAV audio file support

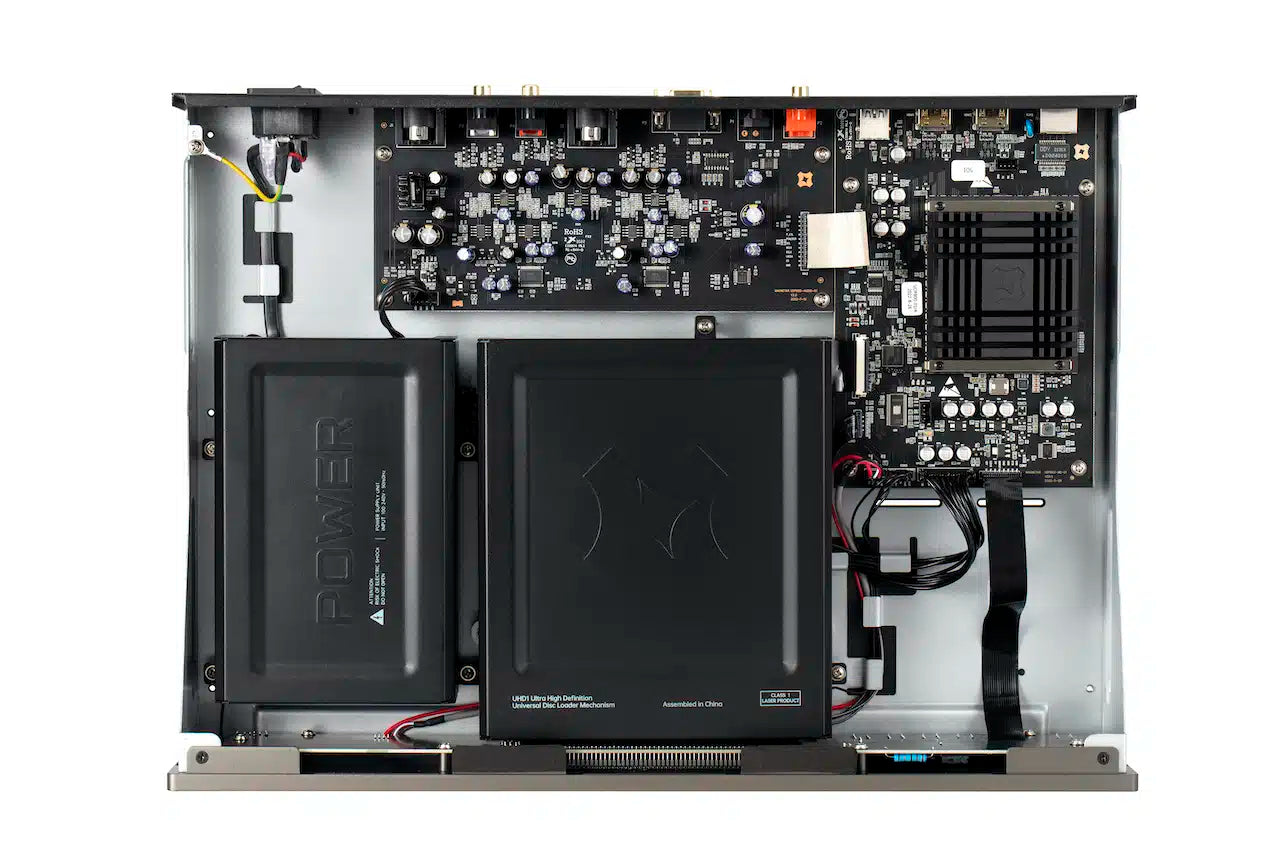

4-layer PCB circuit board with independent wiring
• Dual independent Burr-Brown PCM 1795 DACs
• Stereo XLR & RCA outputs for stereo audio
• Two-stage filter design with Japanese Rubycon electrolytic capacitors
• Independently shielded power supply and CD mechanism
• Brushed aluminium front panel and rigid metal chassis

Disc Type:
- UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

Output:
- Analog audio: stereo
- Independent stereo analog audio: XLR balanced output, RCA output
- Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
- HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
- HDMI video: UHD/p24 1080/1080p / 1080I / 720p / 576p / 576I / 480p / 480I

Analog Audio Characteristics:
- Frequency range: 20HZ-20khz (-3dB ~ +0.05dB)
- Signal-to-noise ratio: & GT: 120dBr
- Total harmonic distortion + Noise: & LT: 0.00018%
- Output level: (RCA) 2. l±0.2Vrms. (XLR) 4.2±0.4Vrms
- Dynamic range: AGT: 120dB
- Channel separation: & GT: 120dB

General specifications:
- Power supply: AC 100-240V ~, 50/60Hz
- Power: 30 W (Standby: 0.5W in energy saving mode)
- Size: 430 mm x 300 mm x 90 mm
- Weight: 8kg
