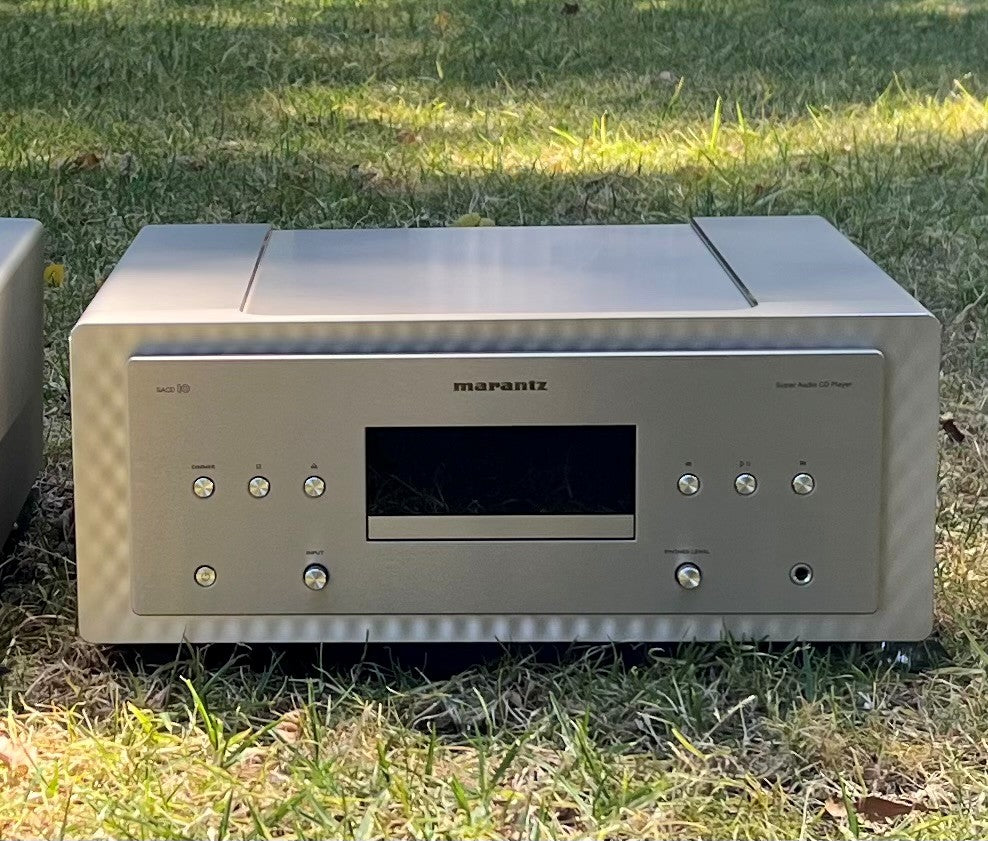

Marantz SACD10 reference compact disc player swansong?
This is Marantz saying how can we make a CD Player that is the best we have ever done? It is clearly throwing down the gauntlet to Esoteric and Accuphase in constructional quality and marketplace appeal. It is beautiful.with that noiseless glide of a draw mech that spells minority high end. With an imperial 73 lbs of mass this is a keeper. Buy it now and have beautiful CD music for life.
Playing 'On every Street" by Dire Straits through the matching Model 10 amplifier and a pair of beautiful Vaf I93 loudspeakers, every nuance and a perfect sense of space is reproduced in the air in front of the system. Mr Knopfler is bought to life in the room for a very personal performance.
Marantz SACD10 reference compact disc player swansong?
Blessed be the musically virtuous for they do not sin. The SACD10 Reference is without sin. It is the grand divine emperor and the pinnacle of the very long Marantz tradition of making excellent silver disc spinners.
The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 transport mechanism for maximum rejection of resonance.
- Marantz SACDM-3 transport mechanism
- DSD 256 and PCM 384 / 32 support
- Headphone amplifier
- Dual power supplies with toroidal transformers
- OLED display
- Marantz Industrial Design
Full technical spec:
General:
Unit (W × H × D mm) 440 × 192 × 442 Cabinet Size 440 × 192 × 422 Net weight 33.0kg Packaging Dimensions (W × H × D mm) 600 × 379 × 540
Packaging gross weight 38.4kg Carton Color 1 Color (Material color: Brown Printing: Black)
Panel Color Black / Marantz Champagne Front (Center) Panel Aluminum Back-shell Aluminum
Front panel illumination Yes (All sides, Dimmer)
Side cover Aluminum (Thickness: Max 15.8mm)
Top cover Aluminum (Thickness: 12mm)
Bottom Layer / Bottom plate Triple layer copper-plated Foot Solid aluminum with Copper
Connectivity:
Fixed Analog Output (RCA) Cinch × 1 Thick nickel plated Maching copper L/R independent terminals
Fixed Balanced XLR Output 1
Optical input / output (Maximum Support) 2/1 44.1 kHz - 192 kHz
Coaxial input / output (Maximum Support) 2/1 44.1 kHz - 192 kHz
Headphone Output Yes (φ6.3 x 1)
Remote Control Bus Terminal Yes
Remote Internal / External Switch Yes
AC Inlet Yes
Accessory Box Yes
Remote Controller RC004PMND Battery Yes (AAA ×2)
Power Cord Yes (ALL region : Audio Grade : OFC)
Stereo RCA Cable ×1 Remote connector cable ×1
CoA card Audio Frequency Response SACD: 2Hz–50kHz (-3dB)
CD: 2Hz–20kHz (±1.0dB)
Harmonic distortion SACD: 0.0004% CD: 0.0015%
S/N SACD: 118dB CD: 116dB
Dynamic range SACD: 112dB CD: 98dB
Line Output Level UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms
Headphone Output Level 130mW / 32 ohms
Power Consumption 55W Less than 0.3W (at Standby)
Audio Feature Output Circuit New HDAM Power Transformer Toroidal Headphone Circuit Discrete H/P Amp
Gain Setting Yes (Low / Mid / High)
H/P On.Off Setting H/P Off automatically, when in use
DAC Circuit New MMM-Conversion Dither MMM-Stream (Dither 1, 2, Off)
Noise Shaper MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
Digital Filter MMM-Stream Filter 1, 2
Selectable Jitter Reducer Yes
DAC Master Clock Design (No Support for Network Playback) Yes
Asynchronous mode (for USB-B input) Yes
Isolator (for USB-B input) Yes (Complete Isolation System Duo)
