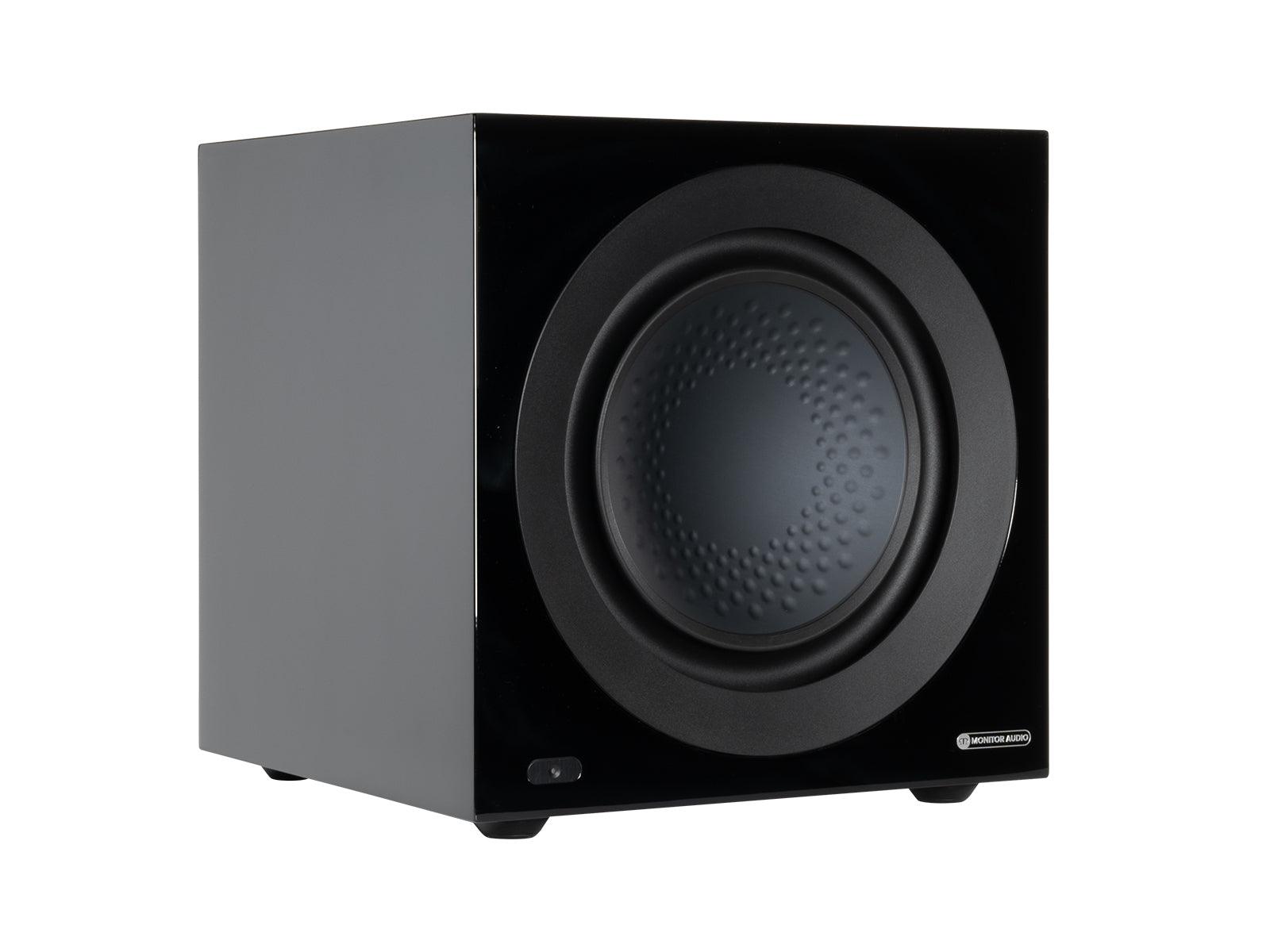

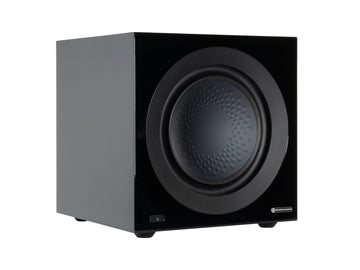

Monitor Audio Anthra W12 Subwoofer
The Anthra series is a completely newly designed subwoofer from the ground up for Monitor Audio. They are moving away from having subwoofers attached to their range of speakers. Instead designing a performance driven subwoofer specifically to sit in its own right in a range of systems.
This Subwoofer is more musical than an SVS but punchier than a REL. It's your piggy in the middle.
High excursion and very adjustable (all with an app) are the standout features of this unit.
On demo now at Carlton Audio Visual.
Monitor Audio Anthra W12 Subwoofer
The three models in the Anthra Subwoofer Series have been engineered with a focus on musicality and control. Through the expert application of sound acoustic knowledge and solid design principles, each model in this formidable range delivers devastatingly deep bass with musicality and agility.
The W12 is the mid-sized model within the Anthra subwoofer series. It features a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,000 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
System Format: Active - Sealed Cabinet
Drive Unit Complement: 1x 12" (305 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification: High-Efficiency Class-D
Lower Frequency Limit: -6dB @16Hz
Upper Frequency Limit: (LPF Off) -6dB @400Hz
Driver Excursion (pk-pk): 50 mm
DSP: 28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier Output Power, 240Vac: Instantaneous: 1700 W*; Continuous short-term: 900 W**
Amplifier Output Power, 120Vac: Instantaneous: 1325 W; Continuous short-term: 700 W
LED UI Control: Brightness, On-Off
Phase Control: 0-360 Degrees measured at LPF Crossover
Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ: Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs; Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage: Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD): 374 x 374 x 374 mm
Power Consumption: 200 W
Cabinet Construction: Braced 25 mm thick MDF with 36mm front baffle
Grille: Cloth covered magnetically attached Grilles
Weight: 28.56 kg (63 lb 1 oz)
* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
