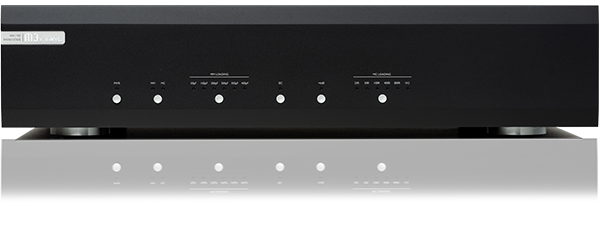

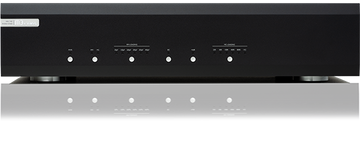

Musical Fidelity M3xVINYL

The M3x ViNYL is a phono stage, designed to be without any practical limits. Connectivity is straight forward. You have an input and an output. Neither of them can be overloaded at the input or limited in the output driving capacity. It can be set for either MM or MC and exact loading. It offers state-of-the art technical and sonic performance just like the M6x ViNYL, but at a cheaper entry level to the epitome of the true spirit of high-end audio.

MM Input

• Frequency response: RIAA or RIAA/IEC ±0 .2dB
• Input sensitivity: 5mV in for 500mV out (at 1 kHz)
• Input impedance: 47KΩ
• Input capacitance: 50-400pF selectable
• Gain: 40 or 46dB with +6dB function
• THD+N: <0.028%
• Signal to noise ratio: 95dB
• Crosstalk: better than 100dB

MC Input

• Frequency response: RIAA or RIAA/IEC ±0.3dB
• Input sensitivity: 500μV in for 500mV out (at 1 kHz)
• Input impedance: 25Ω to 1,2KΩ selectable
• Gain: 60 or 66dB with +6dB function
• THD+N: <0.28%
• Signal to noise ratio: 80dB
• Crosstalk: better than 90dB

Output

• 1 pair RCA: left and right 500mV nom 10V max

Input

• 1 pair RCA

Power requirement

• Mains voltages: 230V/115V; AC 50/60Hz
• Consumption: 20 Watts maximum. 0W in standby)

Weight and Dimensions

• Unit only, unboxed: 6.59 kg
• In shipping carton & inc . accessories: 10.15 kg
• W x H(incl. feet) x D(incl. terminals): 440 x 105 x 390mm

Standard accessories

• Mains lead: 10 Amp IEC
