Naim Uniti Atom

SPECIFICATIONS
Audio Inputs
Digital (S/PDIF)
2 x Optical TOSLink (up to 24bit/96kHz)
1 x Coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x HDMI ARC
Analogue
1 x RCA
USB
2 x USB Type A Socket (front and rear)
Streaming
Chromecast Built-In, Apple Airplay, TIDAL, Spotify® Connect, Bluetooth (AptX HD), Internet Radio™, UPnP™ (hi-res streaming)
Audio Outputs
Analogue
1 x Stereo power amplifier
1 x RCA sub/pre output
1 x 3.5mm headphone jack
Connectivity
Network
Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with internal antennae)
Multiroom
Serve up to 4 network-connected players via UPnP™ at full CD quality.
Party Mode Streaming: Sync up to six Uniti all-in-one players or other Naim streamers and control via the Naim app.
Updates
Update your system wirelessly via the Naim app.
Ripping and Storage
Storage
Store up to 20,000 tracks to a local USB connected storage device and serve to a network-connected player.
Formats
Audio Formats
WAV – up to 32bits/384kHz
FLAC and AIFF – up to 24bit/384kHz
ALAC (Apple Lossless) – up to 24bit/384kHz
MP3 – up to 48kHz, 320kbit (16 bit)
AAC – up to 48kHz, 320kbit (16 bit)
OGG and WMA – up to 48kHz (16 bit)
DSD – 64 and 128Fs
Notes: Gapless playback supported on all formats. All formats to 48kHz maximum over wireless network.
Internet Radio Provider
vTuner premium 5*
Internet Radio Formats
Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS
Power
Amplifier Output
40W per channel into 8 ohms
Power Consumption
Typical use: 90W
Standby mode: <5W Deep sleep: <0.5W Mains Supply
100V, 115V, 230V; 50 or 60Hz
User Control
Handheld
Zigbee RF4CE
App Control
Naim App for iOS and Android
Front Panel

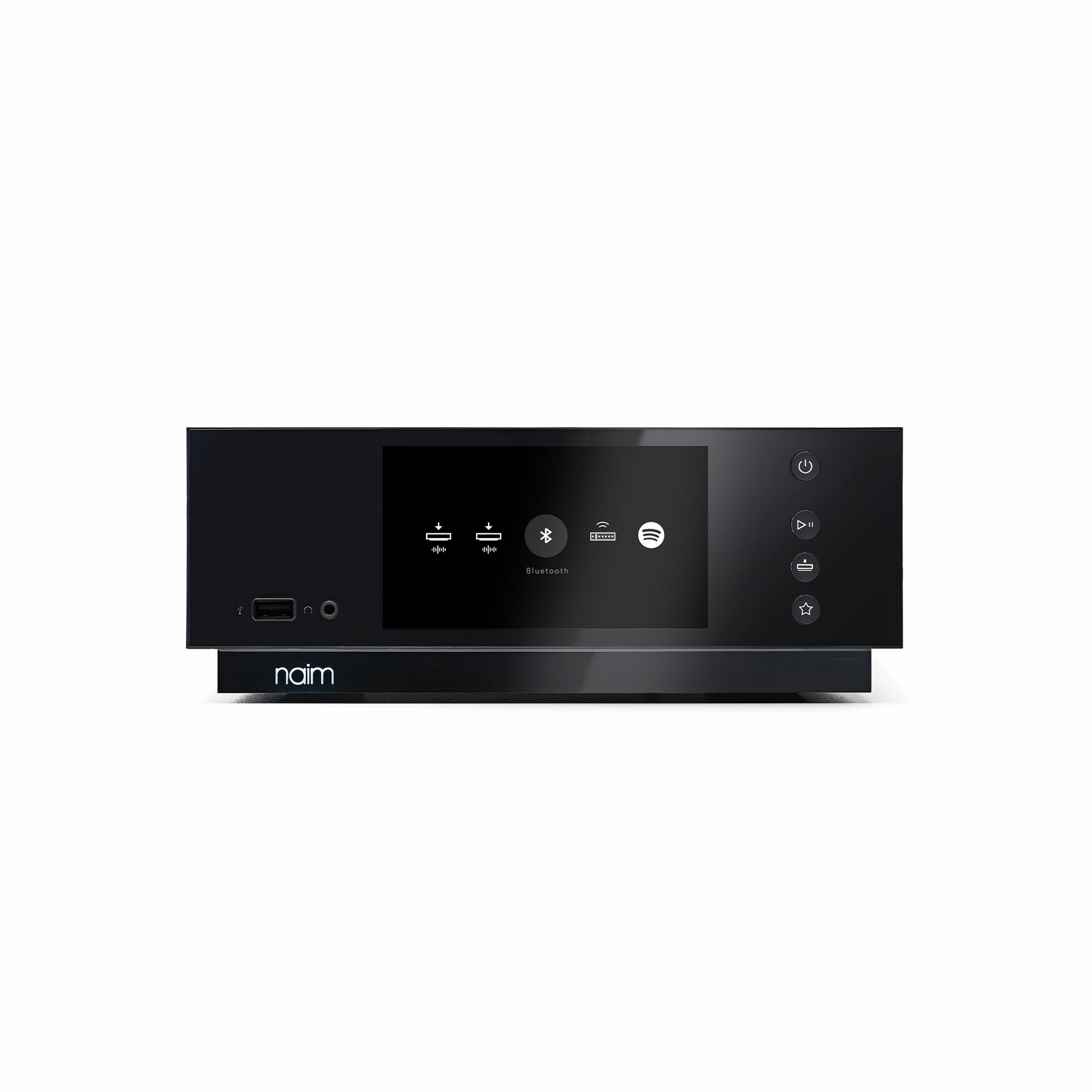

5″ colour TFT display and rotary volume control with proximity sensor and four buttons
Physical
Dimensions
95mm x 245mm x 265mm (HxWxD)
Weight
7kg
Finishes
Brushed and anodised aluminium
Supplied with
Remote control, Power-Line Lite mains cable (UK denominations only), cleaning cloth and quick start guide.
Upgrades
Amplification
External power amplifier or sub-woofer
Mains Cable
Power-Line mains cable
Certification and Licenses
Certification
Apple AirPlay, Chromecast Built-In, Bluetooth, AptX HD, Zigbee RF4CE, Rovi, HDMI, NTFS, HFS and Wi-Fi.
