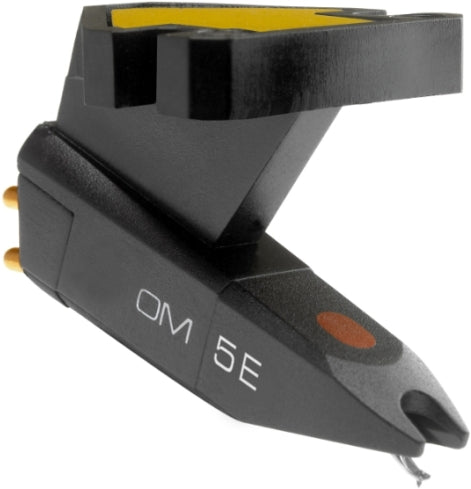

Ortofon OM5E cartridge

Translation missing: en.products.product.price.regular_price $99.00
Translation missing: en.products.product.price.sale_price $99.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.

A reliable, hard wearing and quality cartridge.

This has been one of our go-to cartridges for many people who come in with old Turntables that need a re-vamp.

The relatively inexpensive replaceable stylus means this cartridge will keep on giving.

You may notice we are not always necessarily the cheapest retailer of cartridges but we will ALWAYS include a free professional fitting with all our cartridges. Along with any routine check-ups on your turntable that may be necessary.

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Ortofon OM5E cartridge

Ortofon OM5E cartridge

Translation missing: en.products.product.price.regular_price $99.00
Translation missing: en.products.product.price.sale_price $99.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Product description
Shipping & Returns

The OM 5E is a magnetic cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.

Technical data |
---|---
Output voltage at 1000 Hz, 5cm/sec. | 4 mV
Channel balance at 1 kHz | 2 dB
Channel separation at 1 kHz | 22 dB
Channel separation at 15 kHz | 15 dB
Frequency range at - 3dB | 20-25,000 Hz
Frequency response | 20-20,000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force | 65 µm
Compliance, dynamic, lateral | 20 µm/mN
Stylus type | Elliptical
Stylus tip radius | r/R 8/18 µm
Tracking force range | 1.5-2.0 g (15-20 mN)
Tracking force, recommended | 1.75 g (17.5 mN)
Tracking angle | 20°
Internal impedance, DC resistance | 750 Ohm
Internal inductance | 450 mH
Recommended load resistance | 47 kOhm
Recommended load capacitance | 200-600 pF
Cartridge colour (body/stylus) | Black/Black
Cartridge weight | 5 g

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
