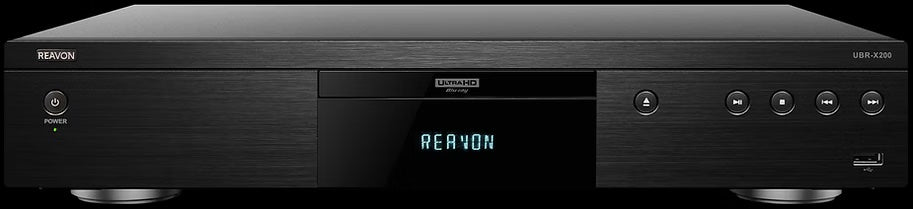

Reavon UBR-X200 Universal Disc Player, Blu-ray Disc Player

Main features

• Universal Disc Player - Ultra HD Blu-ray, Blu-ray, Blu-ray 3D, DVD, SACD, CD
• BD-Live/BONUSVIEW
• HDR10
• Dolby Vision
• 36-bit Deep Colour/”x.v.Colour”
• Dual HDMI Output
• Video Adjust
• Backlite Remote Control
• DLNA
• Fast boot
• Multimedia playback (MKV, FLAC, DSD, AIFF, JPG)​

Video features

• 4K Scaling - Enhance the home cinema experience by quadrupling Full HD 1080p resolution with 4K (3840 x 2160) upscaling of all video sources.
• True 24p Cinema - Many Blu-ray and 4K Ultra HD Blu-ray discs are encoded at 24 frames per second, the same frequency as the original film screened in theaters. The UBR-X200 maintains the original 24-fps rate straight through to the screen with progressive scanning.
• Dolby Vision® - This stunning HDR imaging technology brings extraordinary color, contrast, and brightness to the screen.
• Video Adjust - Set the brightness, contrast, color saturation, hue, sharpness and noise reduction.

Audio features

• Texas Instruments Burr-Brown Audio PCM1795 DACs (RCA Unbalanced & XLR Balanced)

• 2-Channel DAC:

• 32-Bit Resolution

• Analog Performance: ​

• Dynamic Range: 123 dB
• THD+N: 0.0005%
• Differential Current Output: 3.9 mApp

• 8× Oversampling Digital Filter:

• Stop-Band Attenuation: –98 dB
• Passband Ripple: ±0.0002 dB
• Sampling Frequency: 10 kHz to 200 kHz
• System Clock: 128, 192, 256, 384, 512, or 768 fS With Autodetect
• Accepts 16, 24 and 32-Bit Audio Data
• Large-Capacity PCB Toroidal Transformer (Military Engineering Class)
• Custom Audiophile Capacitors
• Direct Function for Pure Analogue Audio Output
• Dual HDMI Output for Pure Digital Audio Output
• Jitter-less Clock
• Ultra-Rigid Construction
• 3 mm Steel Plate Rigid Under Base for Low Noise and Low Centre of Gravity
• High Quality Main Circuit Board for High S/N Ratio
• Rigid Optical Drive
• 24-Bit Delta-Sigma DAC
• Texas Instruments Burr-Brown Audio PCM1690 DACs (Analogue Audio Out 7.1/5.1)

• ​8-Channel DAC:

• High Performance: Differential, fS = 48 kHz
• THD+N: –94 dB
• SNR: 113 dB
• Dynamic Range: 113 dB
• Sampling Rate: 8 kHz to 192 kHz
• System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, 1152 fS
• Differential Voltage Output: 8 Vpp
• Analog Lowpass Filter Included

• 4x/8x Oversampling Digital Filter:

• Passband Ripple: ±0.0018 dB
• Stop Band Attenuation: –75 dB
• Zero Flag
• Data Length: 16, 20, 24, 32 Bits
• Analog Mute by Clock Halt Detection
• Music File Playback: FLAC (2.0/5.1), M4A, AIF, AIFF, DSF (2.0/5.1), DFF (2.0/5.1), MP3, OGG, APE
• Home Theater Audio: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD MA, DTS-HD HRA, DTS:X

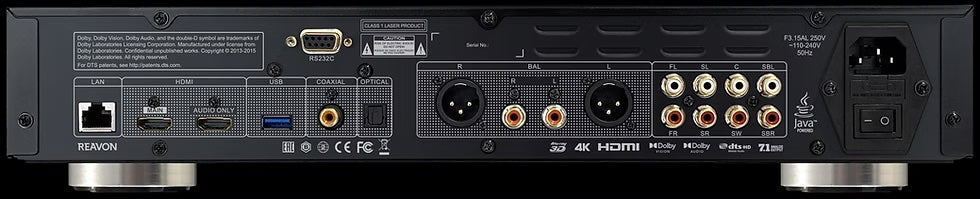

Terminals

• HDMI 1 Out for Audio/Video
• HDMI 2 for Audio Only
• Digital Coaxial Out
• Digital Optical Out
• USB In (1 USB 2.0 Front, 1 USB 3.0 Rear)
• Ethernet
• RS-232C
• Analogue Audio Out Stereo (RCA Unbalanced, XLR Balanced)
• Analogue Audio Out 7.1/5.1​

Technical Specifications

• Mediatek MT8581 SoC
• Quad-core ARM Cortex-A53 CPU cluster
• ARM Mali-T860 MP2 GPU

General Specifications

• Power: AC 220-240 V, 50/60 Hz
• Power Consumption: 42 W
• Power Consumption During Standby: 0.45 W
• Dimensions (W x H x D): 430 x 85 x 300 mm
• Weight: 6.8 Kg / 15 lbs
