REL 212/SX Subwoofer
Introducing the 212/SX, 1000W of goodness with a rear firing, down firing and two active 12" front firing. Upgraded with carbon fibre blades behind the drivers to stiffen yet in doing so adding nominal weight to the drivers.
This means more control, faster, even more agile and extended low bass.
"Home Theatre Hi Fi Secrets on the Rel 212SX
REL 212/SX Subwoofer
We believe in quality first, not simply power and boom. We believe that 1,000 watts is only desirable if it’s conveyed with speed and control. Which is why the 212/SX was engineered to not only make your heart pound and walls shake, but restore midrange warmth and harmonic structure, while providing a powerful, rich low-end. This combination of speed, power and grace driving multiple room modes (forward, down and rear) makes it ideally suited for high end 2-channel, grand rooms and dedicated theaters, allowing larger state of the art speakers to spring to full voice.
Specifications
TYPE

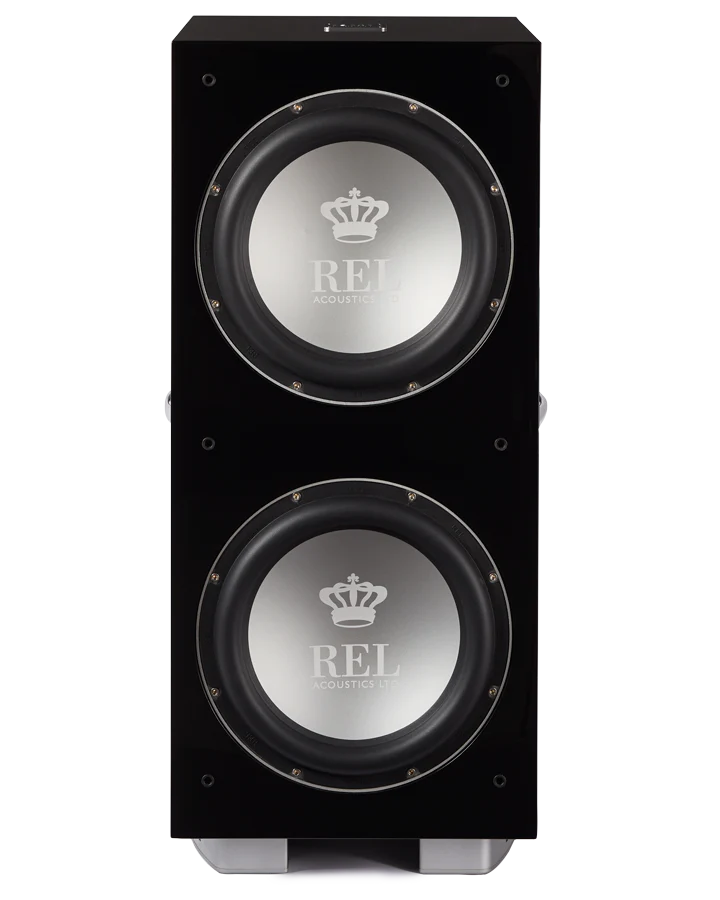

(2) Front-firing active drivers, (1) rear passive, (1) down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
(2) 12 in. (300mm) long throw, Continuous CastAlloy™ cone structure, die cast alloy chassis
PASSIVE RADIATOR SIZE & MATERIAL
Rear: 12 in. (300mm) Continuous CastAlloy™ cone structure, die cast alloy chassis; Down: 12 in. (300mm) Carbon/Carbon flat cone structure, steel chassis
LOW FREQUENCY EXTENSION
-6dB at 18 Hz
INPUT CONNECTORS

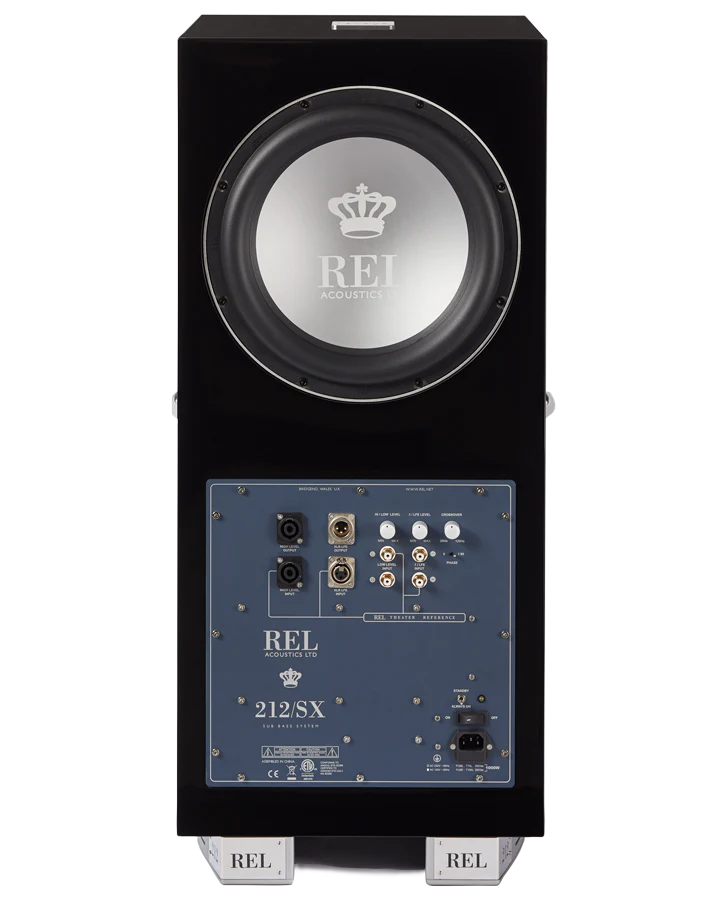

High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR
OUTPUT CONNECTORS
High Level Neutrik Speakon, LFE RCA, LFE XLR
POWER OUTPUT
1,000 watts (RMS)
AMPLIFIER TYPE
NextGen 5 Class D
WIRELESS CAPABILITY
REL AirShip II (sold separately)
DUAL PARAMETRIC FILTER
N/A
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 1120-120 volts for certain markets
FUSES
7 Amp semi delay 220 volts operation, 15 Amp semi delay 120 volts operation
Dimensions
W X H X D
14 1/4in., x 33in., x 20 1/4 in., (362 x 838 x 514.5mm)
NET WEIGHT
128 lbs. (58 kg)
FINISH
Piano Black Lacquer
