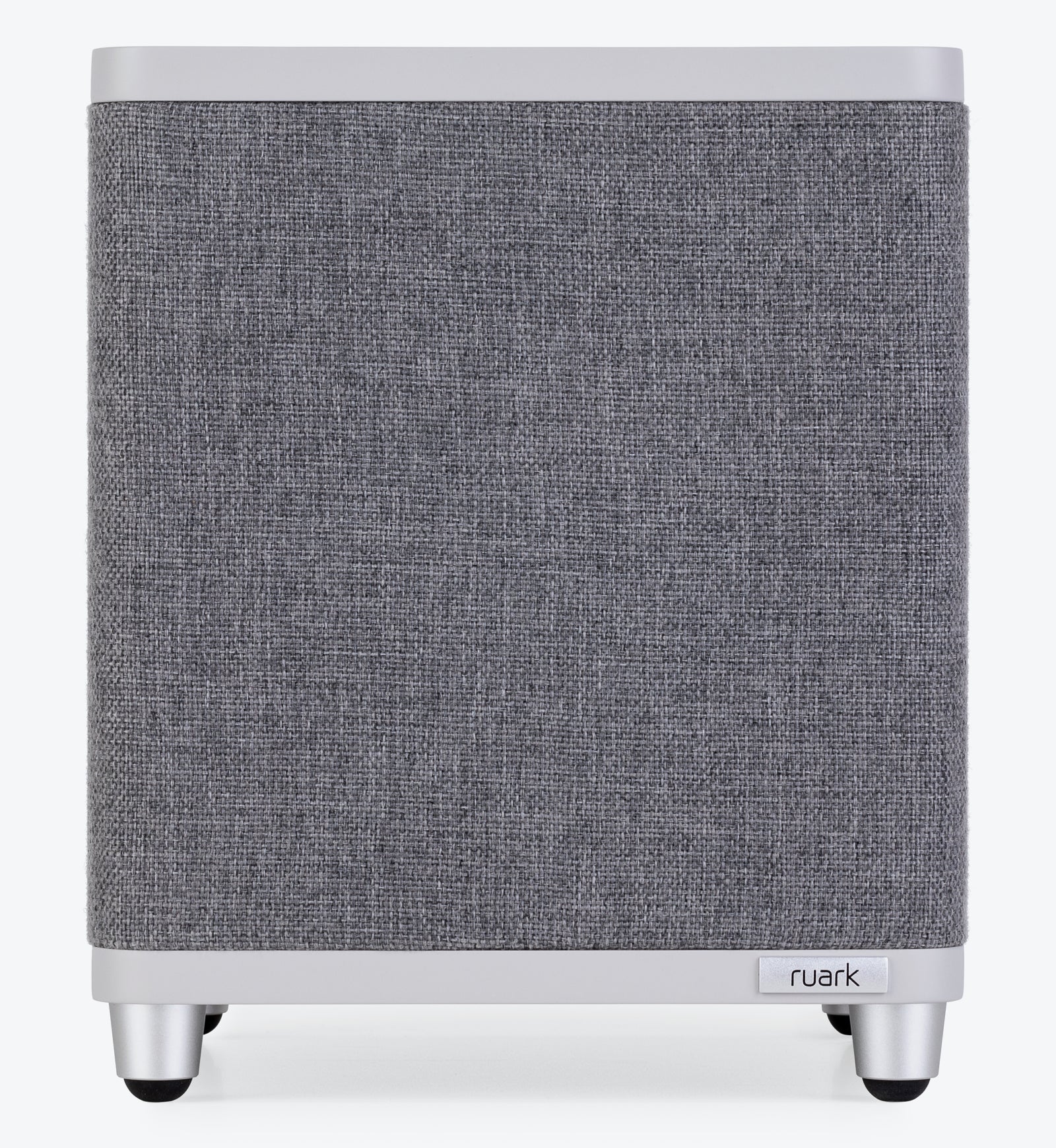

Ruark RS1 Subwoofer

Bass is the foundation of music. It is the element that makes you feel the rhythm, the groove, and the emotion of a song. Bass can make your heart beat faster, your body move, and your mood change. Whether you listen to rock, pop, hip hop, jazz, or classical music, clean and extended bass adds a new dimension to musical enjoyment and that’s why Ruark developed the RS1.

The enjoyment of music is at the core of our designs. RS1 is not about thunderous, overblown bass, but about deep, controlled, and most importantly a musical sound. To achieve this, the enclosure and custom drivers have been optimised and tuned to deliver natural extended bass, that is fast and rhythmic.

Driving the system is a powerful 100-watt Class D amplifier. This new generation amplifier keeps firm control of the bass driver at all volume levels with headroom to spare, although soft clipping is built in should the system ever be overloaded to avoid damage. Setup and adjustment is straightforward and with auto-on/standby, RS1 will automatically turn itself on and off as required.

• Frequency response 25Hz – 200Hz
• Cabinet Tuned passive radiator enclosure
• Drivers 170mm treated fibre long-throw active driver and 170mm passive radiator
• Amplifier 100W RMS Class D with soft clipping filter

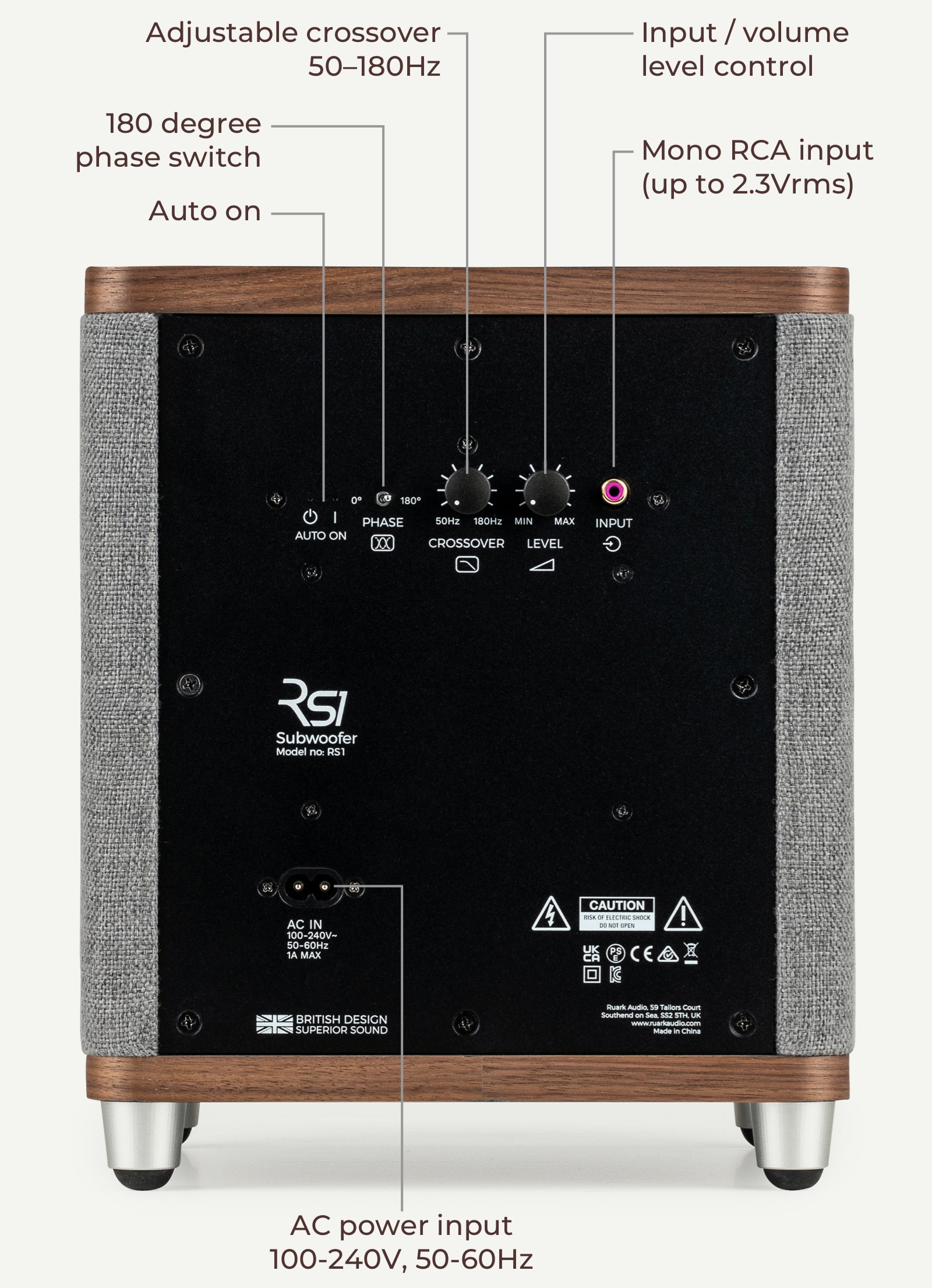

• Controls Adjustable crossover 50–180Hz, input/volume level control and 180 degree phase switch
• Auto on Automatically turns on and sleeps after 15 minutes when no signal is detected
• Input Sub-input via Mono RCA input (up to 2.3Vrms)
• Finish Lead Grey cabinet cloth with Rich Walnut top and bottom panels
• Product compatibility RS1 is compatible with our MR1, R3S and R410 models or any other active speaker or amplifier with subwoofer or pre-out phono connectors
• Box contains RS1 subwoofer, mains lead, 1.5m RCA connector lead and quick start guide
• Power consumption 0.5W standby, 2.0W idle
• AC power input 100-240V, 50-60Hz
• Product dimensions H300 × W250 × D265mm (inc. feet and controls)
• Product weight 6.7kg
