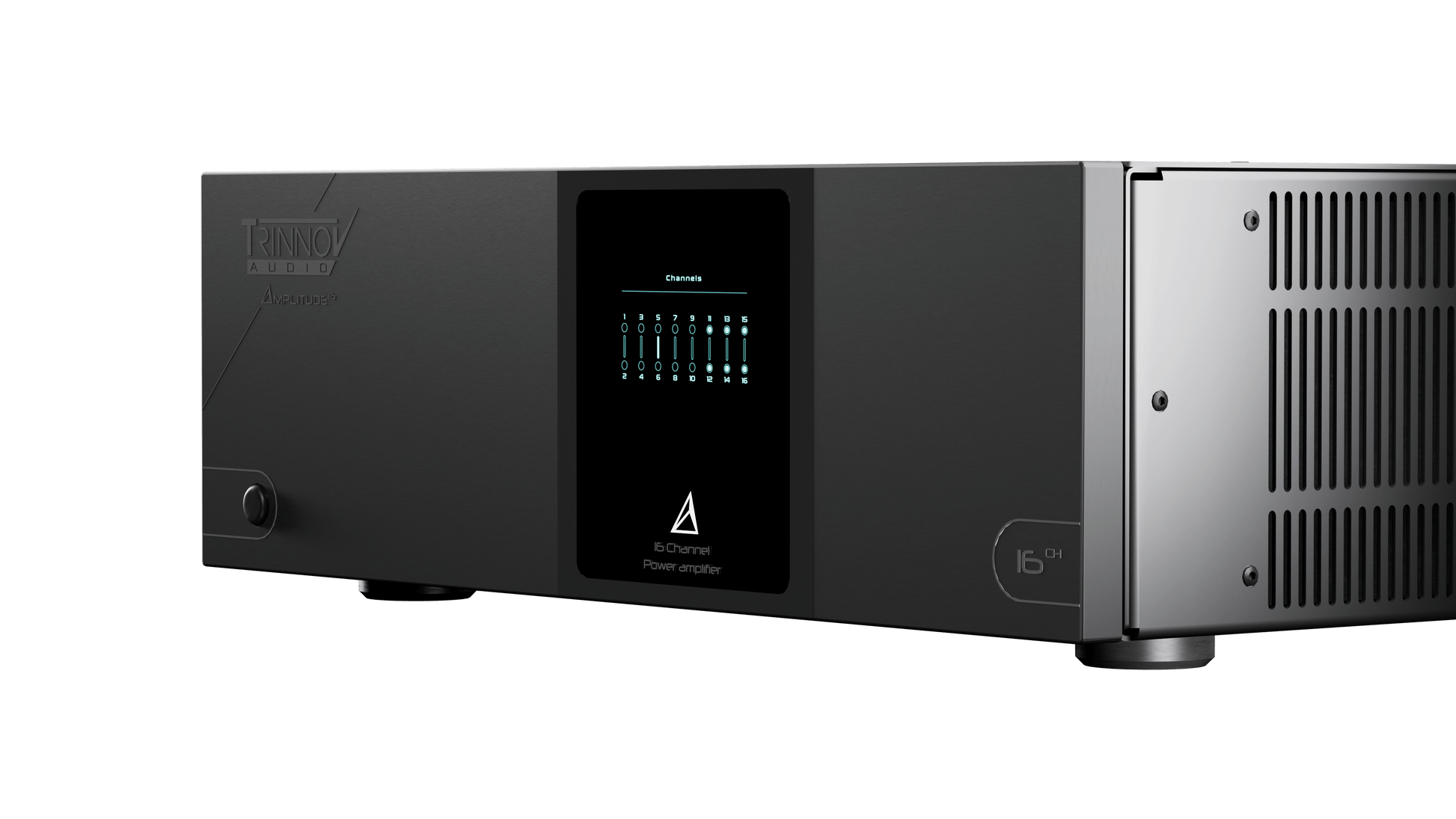

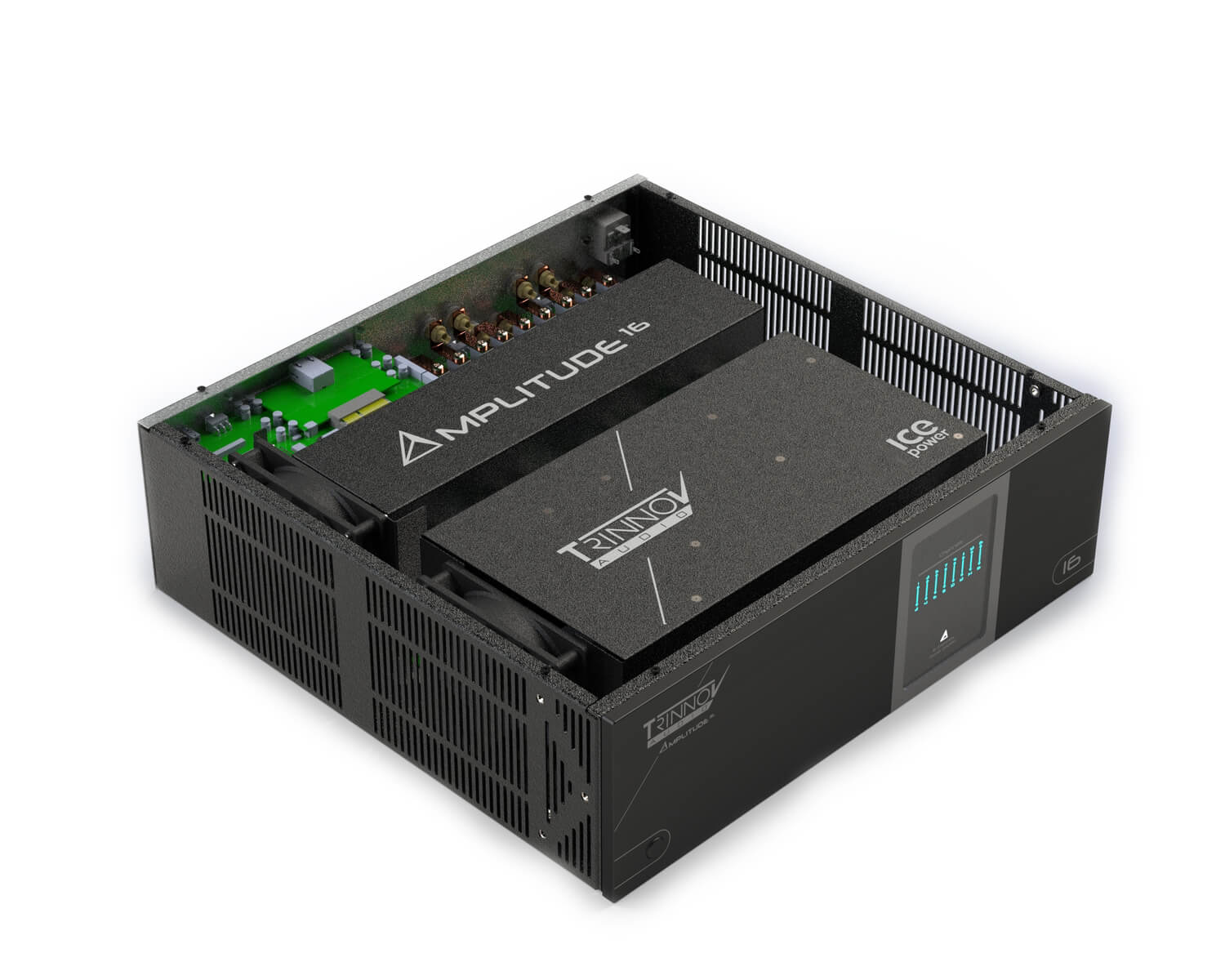

Trinnov Amplitude 16 Theatre power amplifier

Translation missing: en.products.product.price.regular_price $16,995.00
Translation missing: en.products.product.price.sale_price $16,995.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.
The perfect complement for the perfect cinema preamplifier ... the Amplitude 16 has been the subject of much critical acclaim including the EISA Award.

Trinnov Amplitude 16 official site

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Trinnov Amplitude 16 Theatre power amplifier

Trinnov Amplitude 16 Theatre power amplifier

Translation missing: en.products.product.price.regular_price $16,995.00
Translation missing: en.products.product.price.sale_price $16,995.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Product description
Shipping & Returns

The Amplitude16 is the amongst most versatile power amplifiers ever designed to address the varying needs of a state of art cinema. Designed for immersive home theatres, with custom integration in mind, the Amplitude16 becomes perhaps the most versatile power amplifier available today, providing our clients with the unique ability to meet diverse channel counts and power requirements.

AUDIO POWER & GAIN


  • One Channel 8Ω:200W (1kHz, 0,1% < THD+N)
  • One Channel 4Ω:400W (1kHz, 0,1% < THD+N)
  • One Channel Bridged 8Ω:800W (1kHz, 0,1% < THD+N)
  • One Channel Bridged 4Ω:1000W (1kHz, 0,1% < THD+N)
  • Total Output Power (120 VAC):2800W all channels driven SE or BTL
  • Total Output Power (230 VAC):3200W all channels driven SE or BTL
  • Peak Power:6080W all channels driven SE or BTL
  • Gain:16 dB single ended / 22 dB bridged

AUDIO PERFORMANCE


  • THD+N Single Ended:0.0015% - 8Ω, 5W (2dBu)
  • THD+N Bridged:0.0015% - 8Ω, 20W (8dBu)
  • Frequency Response:+0/- 0,6 dB, 20 Hz to 20 kHz, load-independent
  • Damping Factor:2340 at 100Hz / 1820 at 1kHz / 354 at 10kHz
  • Signal to noise ratio:126 dB ref to rated 1% THD output (A-Weighted)
  • Crosstalk:96dB single ended 200W 8Ω
  • Intermodulation Distortion:Less than 0.05%

AUDIO INPUTS & OUTPUTS


  • Input Connectors:2x DB25 Female, Tascam Analog Pinout
  • Input Impedance:47 kΩ, each phase
  • Input Sensitivity:6.16V (+18dBu)
  • Output Connectors:1x 5 way binding post per channel

POWER SUPPLY


  • Power Requirement:2x 100/240V (auto-selecting)
  • Power Consumption:0,52W Standby; 125W idle; Max 2x 2000W
  • Power Input:2x IEC C14
  • Inrush current at startup:16A (<100ms, each inlet)
  • Thermal Conversion:683 BTU/h MAX
  • Mains Fuse:2x 10 Amp slow blow
  • 12V Trigger Input:5-15 VDC; Steady State (mini-jack TS)
  • 12V Trigger Output:8-10 VDC; Steady State (mini-jack TS)

WEIGHT & DIMENSIONS


  • Dimensions (W x H x D) mm, including rack ears:482 x 132 x 452
  • Dimensions (L x H x P) inches, including rack ears:19” x 5 1/5” x 17 4/5”
  • Shipping box dimensions (W x H x D) cm:54 x 53 x 22
  • Weight:20.5kg / 45.3 lbs
  • Shipping weight / volume:22.4kg / 0.064 M3

WARRANTY


  • Standard Warranty:5 year
  • Transferable:Yes
